Nokia C2-07 Mic not working, Microphone is not working in Nokia C2-07, Voice is missing and can not reach to destination Mobile Phone, Mic problem, Microphone Solution in Nokia C2-07

Nokia C2-07 Mic not working, Microphone is not working in Nokia C2-07, Voice is missing and can not reach to destination Mobile Phone, Mic problem, Microphone Solution in Nokia C2-07

Tools:-
Nokia T5 and T4 for disassemble.
Universal Microphone.
Electronics Cleaner.
Hot Air.
Electronics Meter.
Solding iron.
Diagnostics & Solutions:-
Before Disassemble of Nokia C2-07 make sure that mic whole in Cassing ( housing ) is opened. And here is not any dust in it. Disassemble the mobile phone and remove mic microphone from mother board with solding iron.
Check points on mother board with miter and if any value is missing check all these parts that are given in red and blue color in above diagram.If any of them is missing apply jumpers as described in above repairing picture.
Replace new mic and apply jumpers to its negative and positive points. On the mother board Red color line shows ground print and Blue line indicates positive print of mic. So this will help you to solve mic problem in nokia C2-07
Warnings:-
Apply solder on mic and Remove mic when it too hot so that mic print remain OK.
Don’t apply much heat with hot air it can damage the mother board.
Assemble with focus because if mic is not in its proper place voice will not reach to destination mobile. Or you will not be able to record voice in it.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-07 MMC is not working or it do not accept memory card it can be cause of water damage and rust. It can be due to MMC jack and damage pins. And this problem can be reason of MMC I.C So lets check all these parts and try to Repair Memory card Problem in Nokia C2-07.

if Nokia C2-07 MMC is not working or it do not accept memory card it can be cause of water damage and rust. It can be due to MMC jack and damage pins. And this problem can be reason of MMC I.C So lets check all these parts and try to Repair Memory card Problem in Nokia C2-07.


The above diagram have a red line to show you which parts are used in Memory Card function so check these parts and in first step try to clean them with electronics cleaner and apply some hot air to dry it.
Once it is dry check and if not working then replace this I.C to solve memory card problem in Nokia C2-07.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-06 Full PCB cellphone Diagram Mother Board Layout. Here is the cellphone diagram of Nokia C2-06 PCB.so i will add some more cellphone diagram in high resolution so that you can add some more repairing trick for

Nokia C2-06 Full PCB cellphone Diagram Mother Board Layout.
Here is the cellphone diagram of Nokia C2-06 PCB.so i will add some more cellphone diagram in high resolution so that you can add some more repairing trick for

High Resolution

Nokia C2-06 if you find some new repairing techniques please must email me and i will post that diagram with your reference in this way we all make it possible “REPAIRING MADE EASY” the basic point of www.u2ugsm.com
Thanks
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-06 Blank Lcd Display, Nokia C2-06 White Lcd Display, Nokia C2-06 Lcd Jack Damage

Nokia C2-06 Blank Lcd Display, Nokia C2-06 White Lcd Display, Nokia C2-06 Lcd Jack Damage Prints Missing.
Tools:-
To solve lcd display problem in Nokia C2-06 we have required a few tools and components.
Nokia screw Driver t5 and t4 for opening screw .
Lcd panel for Nokia C2-06
Electronics Cleaner for rust or water damage.
Hot air to dry the mother board.
Lcd Jack if we have to replace it.


Diagnosting & Solution:
After disassemble of Nokia C2-06 remove lcd and check lcd jack and its near by area for rust or water damages.
If here is some carbon on parts or at lcd jack.
Apply electronics cleaner and dry it with hot air for a few mint.
Do not apply so much heat it can harm your skin and mother board parts also.
Check with Lcd and if it is still blank replace with new one.
It might be possible that lcd jack pins are missing or not getting connected with lcd so change it.
Check all these links as given in above diagram in different colors so that you can find them easily.
Warnings:
Do not apply to much heat it can damage the mother board.
Make sure mother board is dry proper when you apply electronics clean.
Check Lcd jack and when removing it make sure solder has been melt.
If solder has not proper melt and you try to remove lcd jack prints might be damage.
When you replace lcd make sure lcd strip is proper fixed.
It can be damage when you assemble the phone if not in proper place.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-06 insert sim problem, Sim is not working in Nokia C2-06, Sim is not Valid, Single Sim is not working in Nokia C2-06

Nokia C2-06 insert sim problem, Sim is not working in Nokia C2-06, Sim is not Valid, Single Sim is not working in Nokia C2-06


Diagnostic and Solutions.
if sim is not working in Nokia C2-06 is can be cause of water damage or missing components. Use different sim and if sim is not working then de assemble Nokia C2-06.
Once Mobile phone is disassemble check all these parts that are given in above diagram and apply electronics cleaner. Apply hot air so that it can be dry but not to much because it can damage the mother board or may can harm your skin.
these different color lines are indicating different path and tracks that are used in sim function in Nokia C2-06 so if nay of them is missing apply that jumper as shown in diagram to solve insert sim problem in Nokia C2-06
If single sim is not working out of these two you can only jumper those parts that are used by it. And to find prints and track you can see above diagram.
Warnings:
Do not apply to much heat it can damage the mother board and harm your skin.
When apply jumpers make sure the do not be ground with other prints.It can short the mobile phone.
Remove Sim Ic with hot air because with Solding iron it might can damage prints also.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-06 ringer HF is not working, Nokia C2-06 Ringer Speaker is not working, Nokia C2-06 can not play music. We can not here voice during loud speaker in nokia c2-06. Nokia C2-06 Ringer,

Nokia C2-06 ringer HF is not working, Nokia C2-06 Ringer Speaker is not working, Nokia C2-06 can not play music. We can not here voice during loud speaker in nokia c2-06.
Nokia C2-06 Ringer,

Diagnostic & Solutions:-
If Nokia C2-06 is not abble to ring a bell and we can not use loud speaker it might be fault of ringer or it may not be attached with mother board.
it can be damage or might be its not in proper location.It can be cause of Water damages and missing components,So lets solve the problem in a few simple steps as given in above diagram.
Disassemble Nokia C2-06 and check ringer points with electronics meter.If ringer shows good value then check point on the mother board and if the have also a good value it can be cause of miss fitting.
So assembly with proper placements and tight the screw and try it if not working then replace ringer with new one.If you find some prints missing then apply jumpers as given in above diagram. There are two different color lines Red and Blue.These lines indicates the negative and positive prints of ringer in Nokia C2-06 so apply these jumper to solve ringer problem in nokia C2-06
Warnings:-
Do not apply much heat with hot air it can damage the mother board and your skin.
Keep in mind about placement of ringer because it is not proper ringer will not work.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press “subscribe”

Nokia C2-06 Blank Lcd Display, Nokia C2-06 White Lcd Display, Nokia C2-06 Lcd Jack Damage Prints Missing.

Nokia C2-06 Blank Lcd Display, Nokia C2-06 White Lcd Display, Nokia C2-06 Lcd Jack Damage Prints Missing.
Tools:-
To solve lcd display problem in Nokia C2-06 we have required a few tools and components.
Nokia screw Driver t5 and t4 for opening screw .
Lcd panel for Nokia C2-06
Electronics Cleaner for rust or water damage.
Hot air to dry the mother board.
Lcd Jack if we have to replace it.


Diagnosting & Solution:
After disassemble of Nokia C2-06 remove lcd and check lcd jack and its near by area for rust or water damages.
If here is some carbon on parts or at lcd jack.
Apply electronics cleaner and dry it with hot air for a few mint.
Do not apply so much heat it can harm your skin and mother board parts also.
Check with Lcd and if it is still blank replace with new one.
It might be possible that lcd jack pins are missing or not getting connected with lcd so change it.
Check all these links as given in above diagram in different colors so that you can find them easily.
Warnings:
Do not apply to much heat it can damage the mother board.
Make sure mother board is dry proper when you apply electronics clean.
Check Lcd jack and when removing it make sure solder has been melt.
If solder has not proper melt and you try to remove lcd jack prints might be damage.
When you replace lcd make sure lcd strip is proper fixed.
It can be damage when you assemble the phone if not in proper place.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

Nokia C2-06 Charger not suported solution.Nokia C2-06 Charging ways.Nokia C2-06 Charging ptroblem

Plug in Charging pin into charging jack of Nokia C2-06 and if it shows an indication message Charger Not Supported it can be due to these few parts that are given bellow in diagram.So after disassemble of Nokia C2-06 clean these parts and area with electronics cleaner.

Apply hot air and make it dry.Resold these parts indicated with red lines in above diagram to solve Charger Not Supported in Nokia C2-06
You can take these parts from other models of nokia also to solve charging problem in nokia C2-06
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

if Nokia C2-06 MMC is not working or it do not accept memory card it can be cause of water damage and rust. It can be due to MMC jack and damage pins. And this problem can be reason of MMC I.C So lets check all these parts and try to Repair Memory card Problem in Nokia C2-06.


The above diagram have a red line to show you which parts are used in Memory Card function so check these parts and in first step try to clean them with electronics cleaner and apply some hot air to dry it.
Once it is dry check and if not working then replace this I.C to solve memory card problem in Nokia C2-06.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

Nokia C2-06 MMC is not working or it do not accept memory card it can be cause of water damage and rust. It can be due to MMC jack and damage pins. And this problem can be reason of MMC I.C So lets check all these parts and try to Repair Memory card Problem in Nokia C2-06

if Nokia C2-06 MMC is not working or it do not accept memory card it can be cause of water damage and rust. It can be due to MMC jack and damage pins. And this problem can be reason of MMC I.C So lets check all these parts and try to Repair Memory card Problem in Nokia C2-06.


The above diagram have a red line to show you which parts are used in Memory Card function so check these parts and in first step try to clean them with electronics cleaner and apply some hot air to dry it.
Once it is dry check and if not working then replace this I.C to solve memory card problem in Nokia C2-06.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

Nokia C2-06 insert sim problem, Sim is not working in Nokia C2-06, Sim is not Valid, Single Sim is not working in Nokia C2-06

Nokia C2-06 insert sim problem, Sim is not working in Nokia C2-06, Sim is not Valid, Single Sim is not working in Nokia C2-06


Diagnostic and Solutions.
if sim is not working in Nokia C2-06 is can be cause of water damage or missing components. Use different sim and if sim is not working then de assemble Nokia C2-06.
Once Mobile phone is disassemble check all these parts that are given in above diagram and apply electronics cleaner. Apply hot air so that it can be dry but not to much because it can damage the mother board or may can harm your skin.
these different color lines are indicating different path and tracks that are used in sim function in Nokia C2-06 so if nay of them is missing apply that jumper as shown in diagram to solve insert sim problem in Nokia C2-06
If single sim is not working out of these two you can only jumper those parts that are used by it. And to find prints and track you can see above diagram.
Warnings:
Do not apply to much heat it can damage the mother board and harm your skin.
When apply jumpers make sure the do not be ground with other prints.It can short the mobile phone.
Remove Sim Ic with hot air because with Solding iron it might can damage prints also.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

Nokia C2-06 ringer HF is not working, Nokia C2-06 Ringer Speaker is not working, Nokia C2-06 can not play music. We can not here voice during loud speaker in nokia c2-06.

Nokia C2-06 ringer HF is not working, Nokia C2-06 Ringer Speaker is not working, Nokia C2-06 can not play music. We can not here voice during loud speaker in nokia c2-06.
Nokia C2-06 Ringer,

Diagnostic & Solutions:-
If Nokia C2-06 is not abble to ring a bell and we can not use loud speaker it might be fault of ringer or it may not be attached with mother board.
it can be damage or might be its not in proper location.It can be cause of Water damages and missing components,So lets solve the problem in a few simple steps as given in above diagram.
Disassemble Nokia C2-06 and check ringer points with electronics meter.If ringer shows good value then check point on the mother board and if the have also a good value it can be cause of miss fitting.
So assembly with proper placements and tight the screw and try it if not working then replace ringer with new one.If you find some prints missing then apply jumpers as given in above diagram. There are two different color lines Red and Blue.These lines indicates the negative and positive prints of ringer in Nokia C2-06 so apply these jumper to solve ringer problem in nokia C2-06
Warnings:-
Do not apply much heat with hot air it can damage the mother board and your skin.
Keep in mind about placement of ringer because it is not proper ringer will not work.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email “Enter your email address for RSS:” at the right side at top and press

Nokia C5 Lcd problem solution, Nokia C5 Lcd White display, Nokia C5 blank display. All these problems can be solve by following a few steps that I am going to describe here in this Solution of Nokia C5.Look at diagram bellow.

Nokia C5 Lcd problem solution, Nokia C5 Lcd White display, Nokia C5 blank display. All these problems can be solve by following a few steps that I am going to describe here in this Solution of Nokia C5.Look at diagram bellow.

In above diagram you can see some red lines these lines are given to identify components that are used in Nokia C5 display and lcd functions.After dis assembly of Nokia C5 replace lcd panel with new on and check it may can be the fault of lcd.
If replacement of lcd can not solve the display problem in Nokia C5.You can clean mother board and specially these parts that are inline with red color. Because there may can be some rust carbon or water damages.
Dry the mother board with hot air.And re sold or re flow these parts that can solve Nokia c5 display problem. Nokia C5 display solution is also possible with replacement of these parts.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

If nokia C5 lcd light is not working, Nokia C5 display light is not lighting. Then these problems can be solve by following diagram that is given bellow to solve Nokia C5 light solution in this post.

If nokia C5 lcd light is not working, Nokia C5 display light is not lighting. Then these problems can be solve by following diagram that is given bellow to solve Nokia C5 light solution in this post.

In above diagram you can see two color lines that are used in light function of LCD in Nokia C5. Check these Parts adn tracks with meter.If any of these path is missing you can apply jumpers as shown in above diagram for Nokia C5 light solution.
You can replace lcd panel because some time it can be the fault of lcd lights.and mother board is providing the proper voltage to light.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

Nokia C5 keypad light solution is possible with a few basic steps that are given in this post and by following diagram to repair keypad light in Nokia C5. The repairing diagram for Nokia C5 have some parts in line with red color.

Nokia C5 keypad light solution is possible with a few basic steps that are given in this post and by following diagram to repair keypad light in Nokia C5. The repairing diagram for Nokia C5 have some parts in line with red color.

These parts are used in Nokia C5 keypad light functions. After disassambly of Nokia C5 clean these parts that are inline with red color in above keypad light repairing diagram for Nokia C5. Because there can be rust or carbon due to water damages.
May you feel smell like burn parts. Apply hot air to dry the mother board.And do not apply much heat it can damage the mother board.Re sold or re flow of these parts can alos solve Nokia C5 keypad light problem.
Replace these parts and keypad led lights if the above solutions did not work for Nokia C5 keypad light solution.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

When we power on Nokia C5 and it shows notification of Local mode Test mode in its display screen. It can be fault of battery or water damages.Solution of Nokia test mode and Nokia C5 local mode solution is here in this post.

When we power on Nokia C5 and it shows notification of Local mode Test mode in its display screen. It can be fault of battery or water damages.Solution of Nokia test mode and Nokia C5 local mode solution is here in this post.

In above repairing diagram for Nokia C5 local mode solution and Nokia C5 test mode solution a few parts are in line with red color.Replace battery to solve test mode and local mode in Nokia C5.
After disassambly clean all these parts that are in line with red color with electronics cleaner because there can be some rust or carbon due to water damages.Apply hot air to dry the mother board of Nokia C5 for solving Local mode test mode.
re sold or re flow these parts tos solve nokia c5 test mode problem solution , Nokia local mode problem solution.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

Mic problem in Nokia c5 can be solve with a few simple steps that I am posting in this problem solution. A diagram is also attached with this post that shows parts that are used for mic function in Nokia C5.Mic problem can be cause of mic damages or due to water damages.

Mic problem in Nokia c5 can be solve with a few simple steps that I am posting in this problem solution. A diagram is also attached with this post that shows parts that are used for mic function in Nokia C5.Mic problem can be cause of mic damages or due to water damages.

After dis assambly check mother board and if you find some rust carbon in it clean the mother board with CTC and apply some heat to dry the mother board.Do not apply too much heat it can damage the mother board.
Check all these parts that are given in different colors to solve nokia c5 mic problem in it. If any of these ways is missing apply jumpers as given in Nokia C5 mic solution repairing diagram above.
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

Nokia C5 MMC Memory Card is not working, Nokia C5 MMC Memory card not formatted and some other problems that are relevant to Nokia C5 mmc can be sole with a few basic solutions that I am posting in this post.Look at diagram bellow also for solving Nokia C5 MMC problem.

Nokia C5 MMC Memory Card is not working, Nokia C5 MMC Memory card not formatted and some other problems that are relevant to Nokia C5 mmc can be sole with a few basic solutions that I am posting in this post.Look at diagram bellow also for solving Nokia C5 MMC problem.

Try with replacement of MMC Memory Card and if it is not working then dis assemble the mobile phone.Look at mother board because it may have some rust carbon or burn parts.Clean MMC IC and other parts if you find carbon here and apply hot air to dry the mother board.
A jumper is given in above diagram that is used for power of the IC so apply this jumper for Nokia C5 memory card solution.You cna re sold or re flow MMC IC for Nokia C5 memory card problem solution.,
for more detail and new tips and tricks about cellphone service problem keep visiting this page we will update cellphone service diagrams timely with new cellphone diagrams.some related post are also given bellow you can read them also for more information about cellphone.
to get new repairing cellphone diagrams and applications with email click

Nokia C2-00 Display ways

Here's the dual SIM Nokia C2-00  Display connection line paths in case you are going to troubleshoot display problem such blank display, dark screen display, white screen (with tones), No backlight LED that is resulted from due to wet damaged or accidentally dropped issues by the users.

This solution may help to trace each of the LCD display signal data connection including the LCD white backlight LED from a components or tests spots where you can easily manage to track down an open circuit.
This also includes the specific Supply Voltages, Ground pins of the LCD, just refer to the solution for a quick guide.

Rj45 Pin out

HELLO TO ALL MY FRIENDS AND VOLCANO BOX USERS



HERE IS SOME TRICKS HOW TO WORK WITH RX TX ON VOLCANO BOX MOST OF USERS DONT KNOW HOW TO WORK WITH RX TX WITH VOLCANO BOX SO I HAVE OPEN THIS NEW THREAD HERE I HAVE GIVEN ALL SCREEN SHOT HERE WHICH WILL VERY HELPFULL TO NEW USERS TO WORK ON VOLCANO BOX

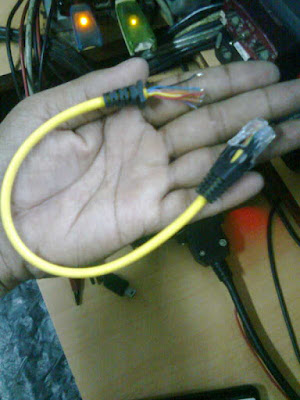

NO NEED TO MODIFIE ANY RJ45 CABLE JUST USE SAMSUNG BOX NSPRO CABLE WORKING GOOD WITH VOLCANO BOX

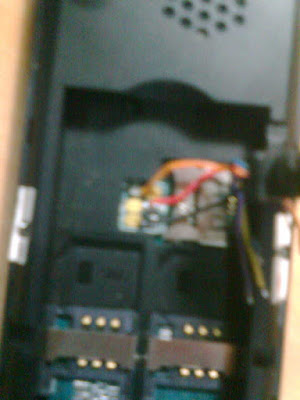

IMAGE HERE

 AND SEE HOW TO CONNECT ITS VERY EASY SEE ALL STEP HERE

                                         LOG HERE

                                     READ FLASH

                                      WRITE FLASH

                                  THANKS
